Specification of Colour Corrugated Roofing Sheet
| Parameter | EN 10346 | ASTM A792 | JIS G 3321 |
|---|---|---|---|
| Thickness | 0.25 – 1.50 mm | 0.25 – 1.50 mm | 0.25 – 1.50 mm |
| Width | Upto 1500 mm | Upto 1500 mm | Upto 1500 mm |
| Corrugated Width | 720 – 910 mm | 720 – 910 mm | 720 – 910 mm |
| Top Coat | As per Customer Req | As per Customer Req | As per Customer Req |
| Back Coat | As per Customer Req | As per Customer Req | As per Customer Req |
| Primer | 3-10 micron (Top & Back) | 3-10 micron (Top & Back) | 3-10 micron (Top & Back) |
| Paint Type | RMP/SMP/SDP/PVDF | RMP/SMP/SDP/PVDF | RMP/SMP/SDP/PVDF |
| Coating | 70 GSM to 150 GSM | 70 GSM to 150 GSM | 70 GSM to 150 GSM |
| Material | Al-Zn alloy | Al-Zn alloy | Al-Zn alloy |
| Yield Strength (min.) | 220 – 550 MPa | 230 – 550 MPa | SGLCC: 220 – 550 MPa SGCH: 500 – 550 MPa |
| Tensile Strength (min.) | 300 – 560 MPa | 310 – 550 MPa | SGLCC: ≥ 270 MPa SGCH: ≥ 570 MPa |
| Elongation (min.) | 16–22 % | 16–22 % | SGLCC (t ≥ 0.6 mm): ≥ 22% SGCH: Not Specified |
| Packing | Sea Worthy Export Packing | Sea Worthy Export Packing | Sea Worthy Export Packing |
Our coloured corrugated roofing sheets are engineered using Al-Zn alloy with advanced coating technology as per EN 10346, ASTM A792, and JIS G 3321 standards. These colour coated roofing sheets are available in thickness ranges from 0.25-1.50 mm and widths up to 1500 mm, they feature 70-150 GSM coating, 3-10 micron primer, and RMP/SMP/SDP/PVDF paint systems. With yield strength up to 220-550 MPa, tensile strength up to 300-560 MPa, and elongation of 16-22%, these corrugated sheets provide excellent durability, corrosion resistance, and structural performance for roofing applications.
Layers of Protection in Coloured Corrugated Roofing Sheet
Our colour corrugated roofing sheets feature a 10 layers protection system designed for superior durability and corrosion resistance. The structure includes a top coat, primer, chemical coating, aluminium-zinc coating, CR steel core, back coat, and guard film, ensuring long service life, weather protection, color retention, and enhanced structural performance.

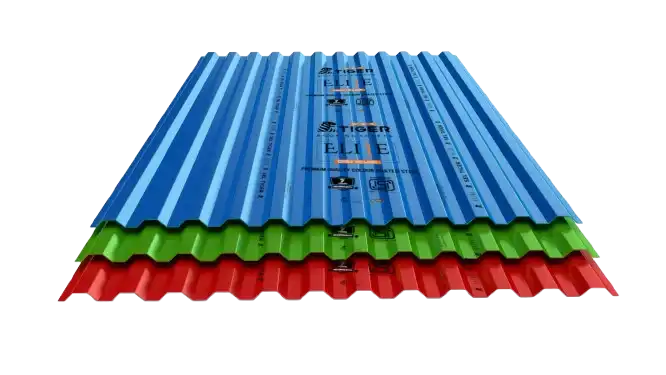

Advantages of Our Colour Coated Corrugated Roofing Sheet
- Strong corrugated design provides better strength and load-bearing performance.
- These corrugated colour sheet resists deformation and bending.
- Provides enhanced resistance to snow and rain loads.
